High-gain, lightweight, directional antenna for outdoor use at 868MHz. Lightweight, high-quality components provide excellent range for HNT (Helium) hotspots, as well as for drone and glider (FLARM or OGN) applications. Will work well with any unlicensed 868MHz-band transmitter or receiver, with the appropriate cable.
We also offer this antenna in 8-element (12.5dBi) and 5-element (9.5dBi) versions.
Please note the photos on this listing are for the 8-element version - photos will be updated shortly.

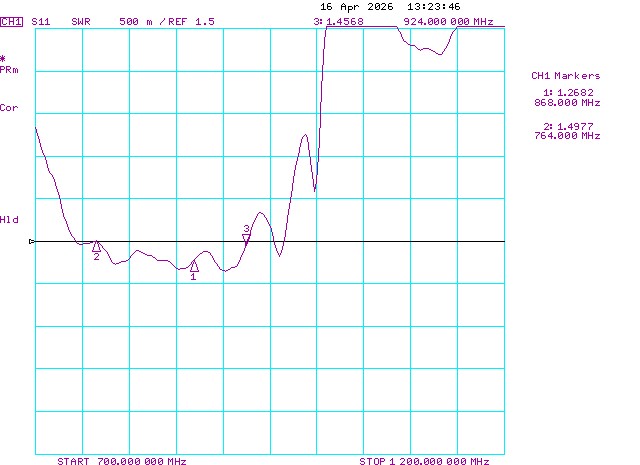

- 12-element tuned yagi antenna from aluminium tube: 14.5dBi gain with very low SWR @ 868MHz (less than 1.5)
- Usable bandwidth approx. 120MHz @ VSWR < 1.5
- Beamwidth - 38° (horizontal) / 34° (vertical), horizontally polarised

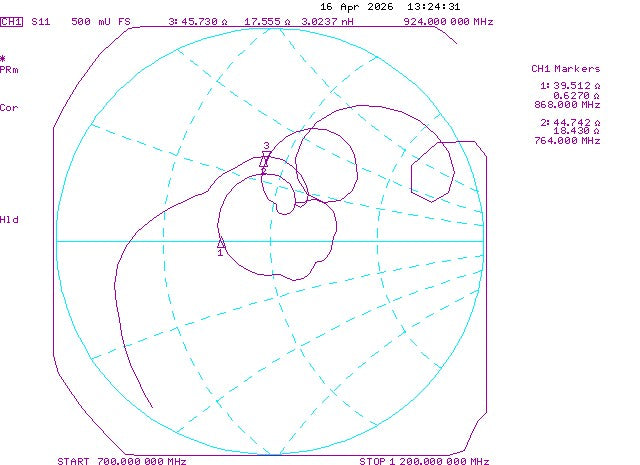

- Impedance - 50Ω @ 868MHz. When measured with a DC multimeter, it is normal for this antenna to appear short circuit.
- Weight - 645g including mounting kit / Length - 960mm
- N-female connector on 290mm pigtail
- Designed for use with FLARM, OGN, LoRa and other 868MHz applications
This range of directional antennas is designed for harsh outdoor use.
- Rated to wind speeds up to 215km/hr (60m/s).
- Operating temperature range -40°C to 60°C. UV resistant and waterproof.
- Pole clamp included (suits 35mm to 50mm pole diameter).
